介绍
Pod
App
inPack
Ops (运营人员)
AppSpec 用于定义 Application 的所有依赖包,资源配置,定制化的Script Executor,…
他的原始数据为 JSON ,如下为一个基于 OpenResty 的 7 层负载均衡 App 的 Spec 定义:
{
"kind": "AppSpec",
"meta": {
"id": "sysinner-httplb",
"name": "Http Load Balancer ",
"version": "18"
},
"roles": [
100,
101
],
"packages": [
{
"name": "openresty",
"version": "1.13.6.2",
"release": "4",
"dist": "el7",
"arch": "x64"
},
{
"name": "sysinner-httplb",
"version": "0.9.0",
"release": "5",
"dist": "el7",
"arch": "x64"
}
],
"executors": [
{
"name": "main",
"exec_start": "if pidof sysinner-httplb; then\n exit 0\nfi\n\nmkdir -p /opt/openresty/openresty/\nrsync -av {{.inpack_prefix_openresty}}/* /opt/openresty/openresty/\n\nmkdir -p /opt/sysinner/httplb/\nrsync -av {{.inpack_prefix_sysinner_httplb}}/* /opt/sysinner/httplb/\n\n/opt/sysinner/httplb/bin/sysinner-httplb -log_dir=/opt/sysinner/httplb/log -minloglevel=1 -logtolevels=true \u003e /dev/null 2\u003e\u00261 \u0026\n",
"exec_stop": "killall sysinner-httplb",
"priority": 8,
"plan": {
"on_tick": 60
}
}
],
"service_ports": [
{
"name": "http",
"box_port": 8080,
"host_port": 80
},
{
"name": "https",
"box_port": 8443,
"host_port": 443
}
],
"exp_res": {
"cpu_min": 1,
"mem_min": 128,
"vol_min": 1
},
"exp_deploy": {
"rep_min": 1,
"rep_max": 1,
"sys_state": 2
}
}

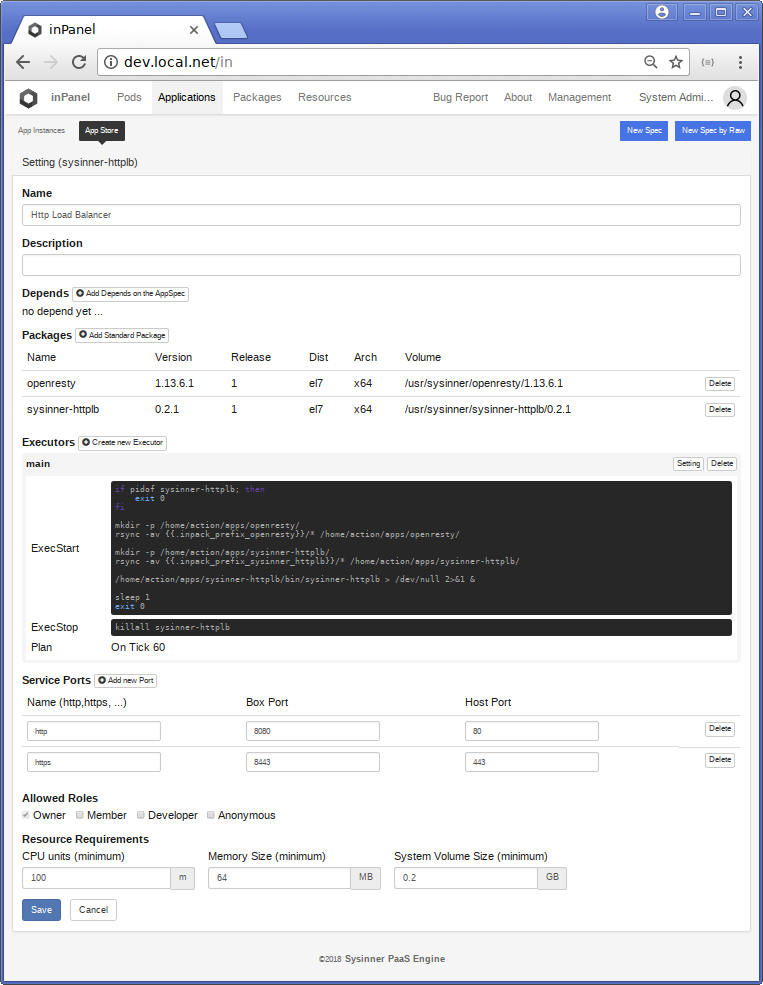

但通常,开发者使用 inPanel 可视化的开发 AppSpec, 入口 inPanel/App/Spec, 如下
